Solar Power kit
We have prepared the complete solar power battery set to include:
1. Solar Panel 100W (see specs below)
2. Gel Battery (for solar systems)

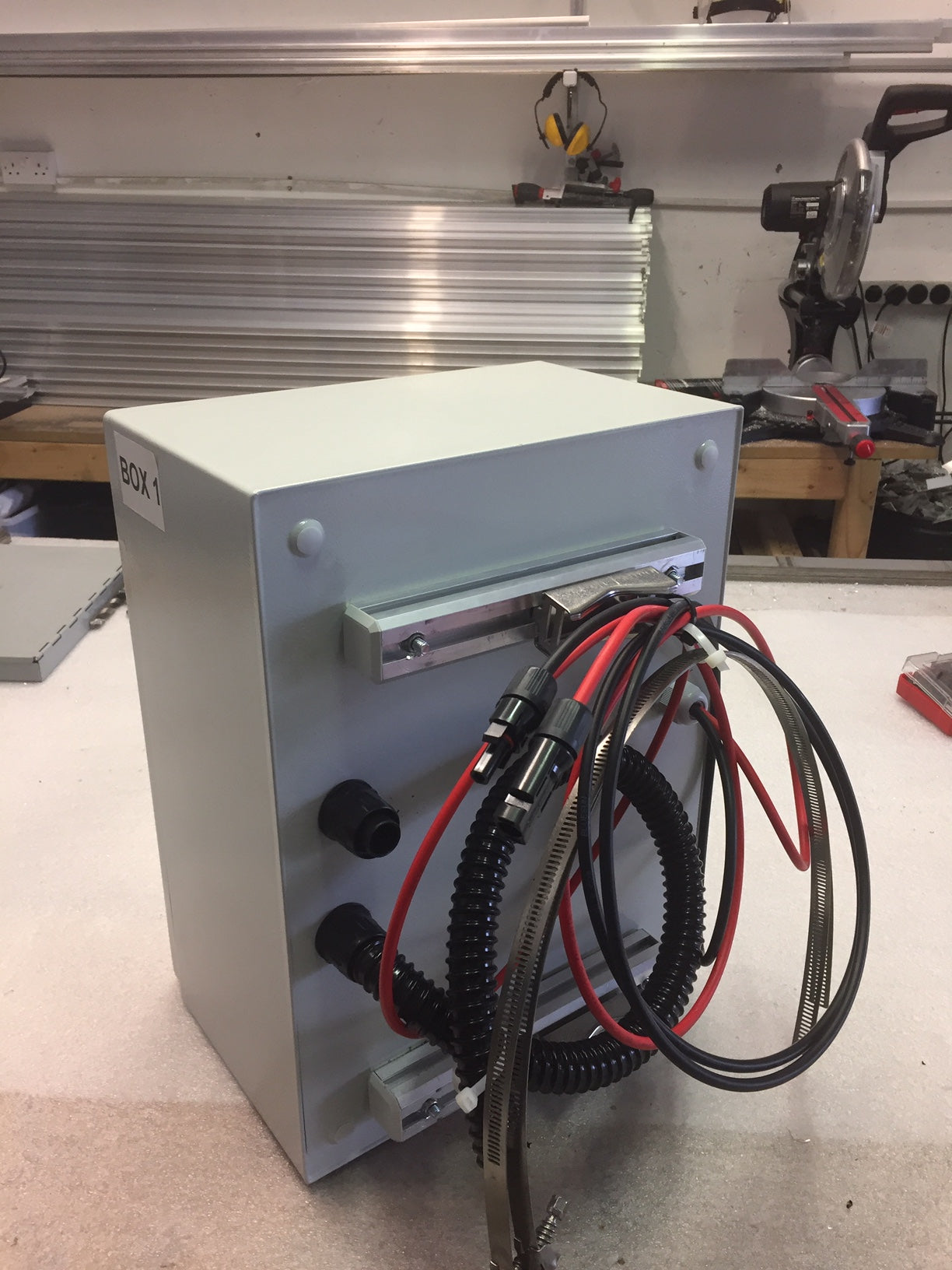

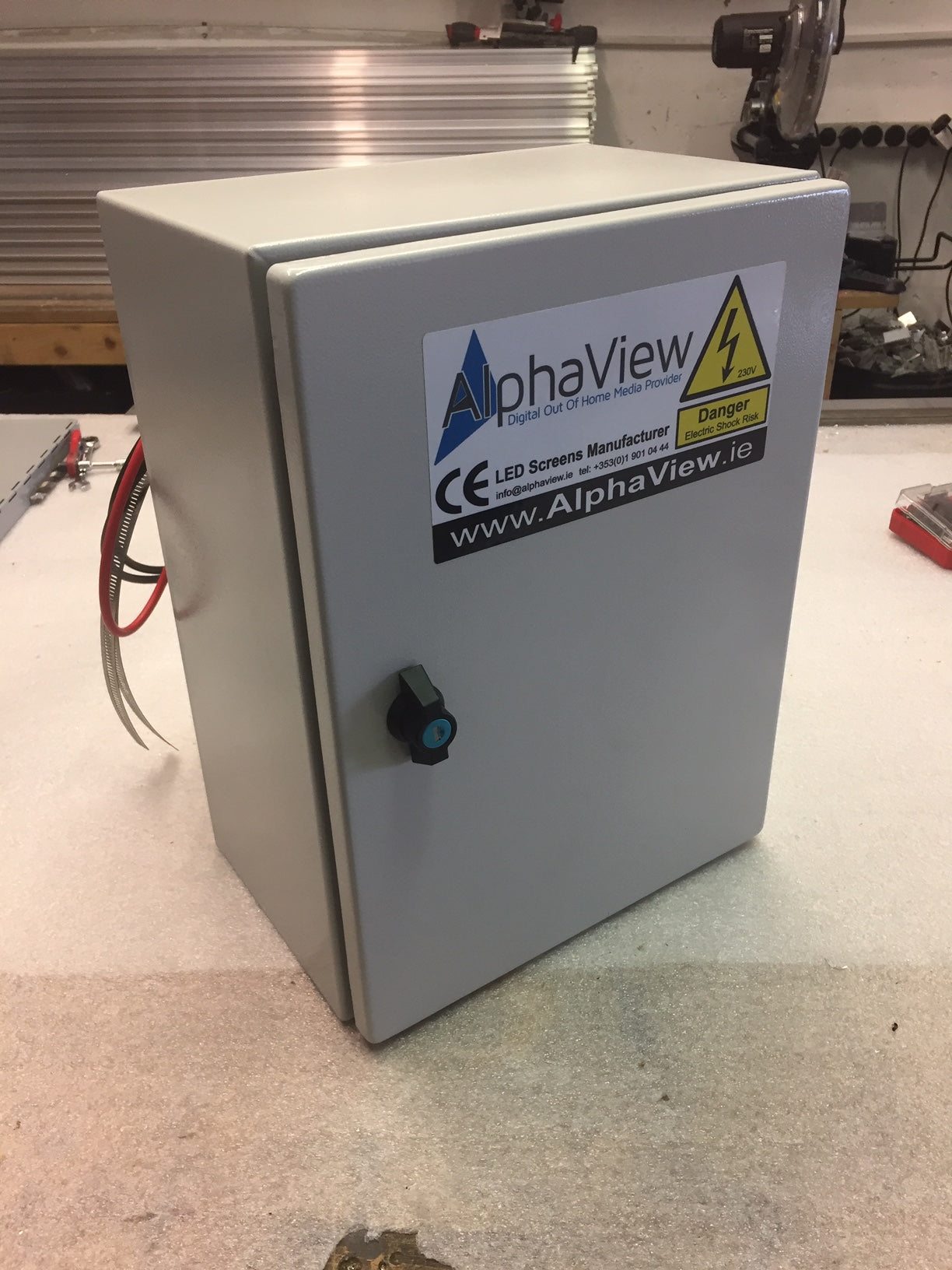

3. Battery box

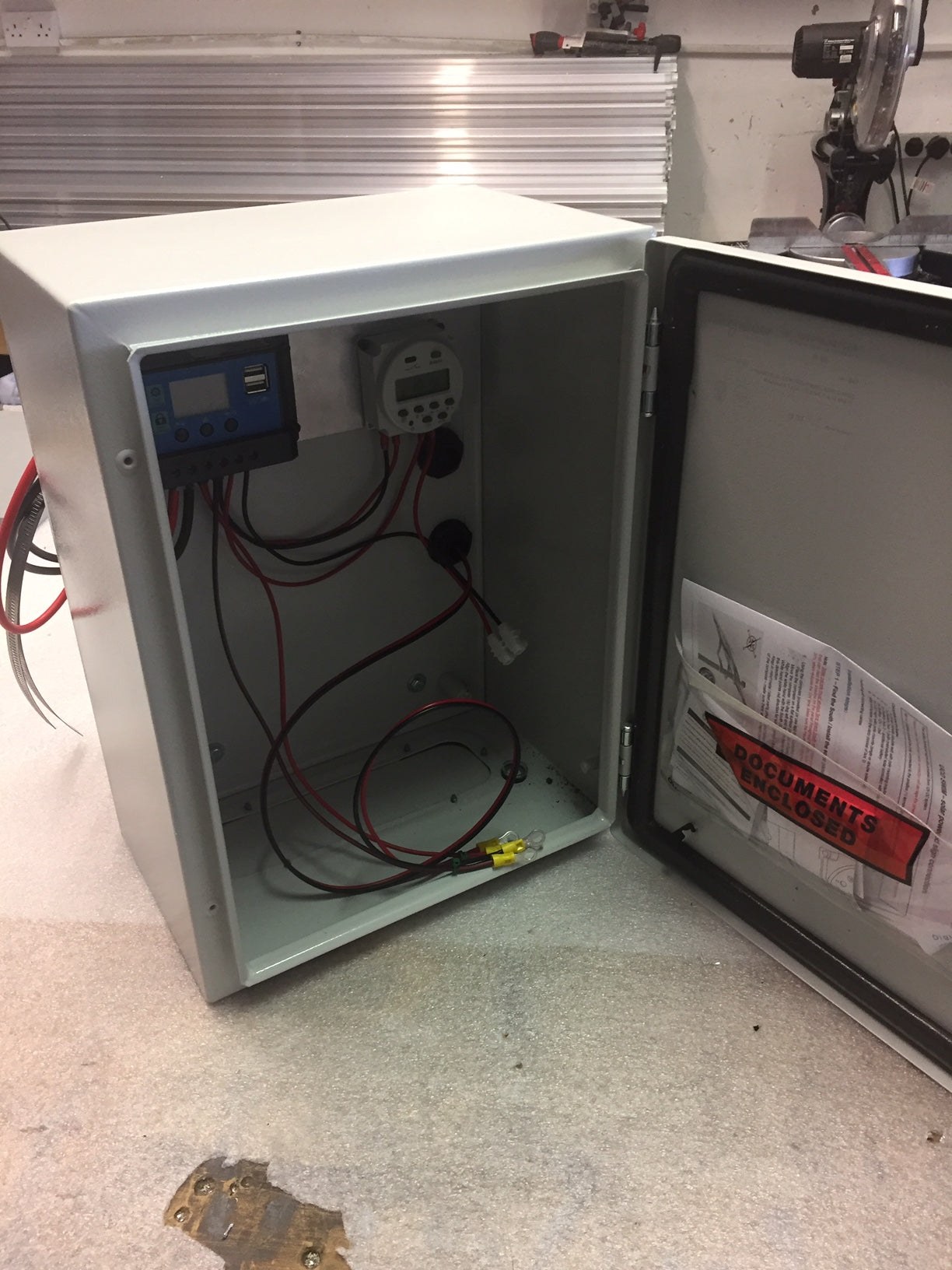

4. Solar Charge Controller (with 2x USB Charging ports - 5V 2.5Amp)
5. Digital Auto Timer (to set the power on / off - schedule for weekends, etc)

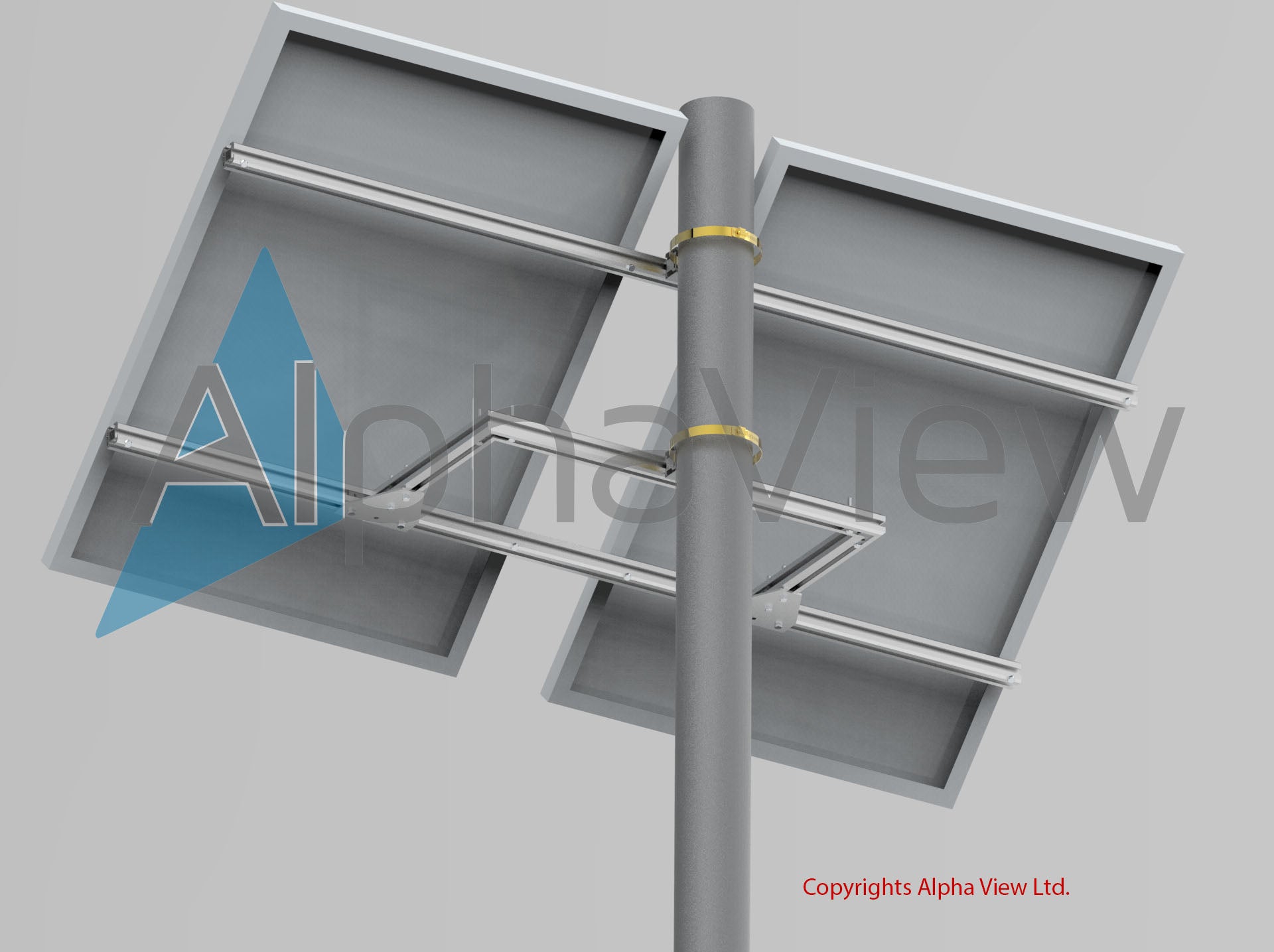

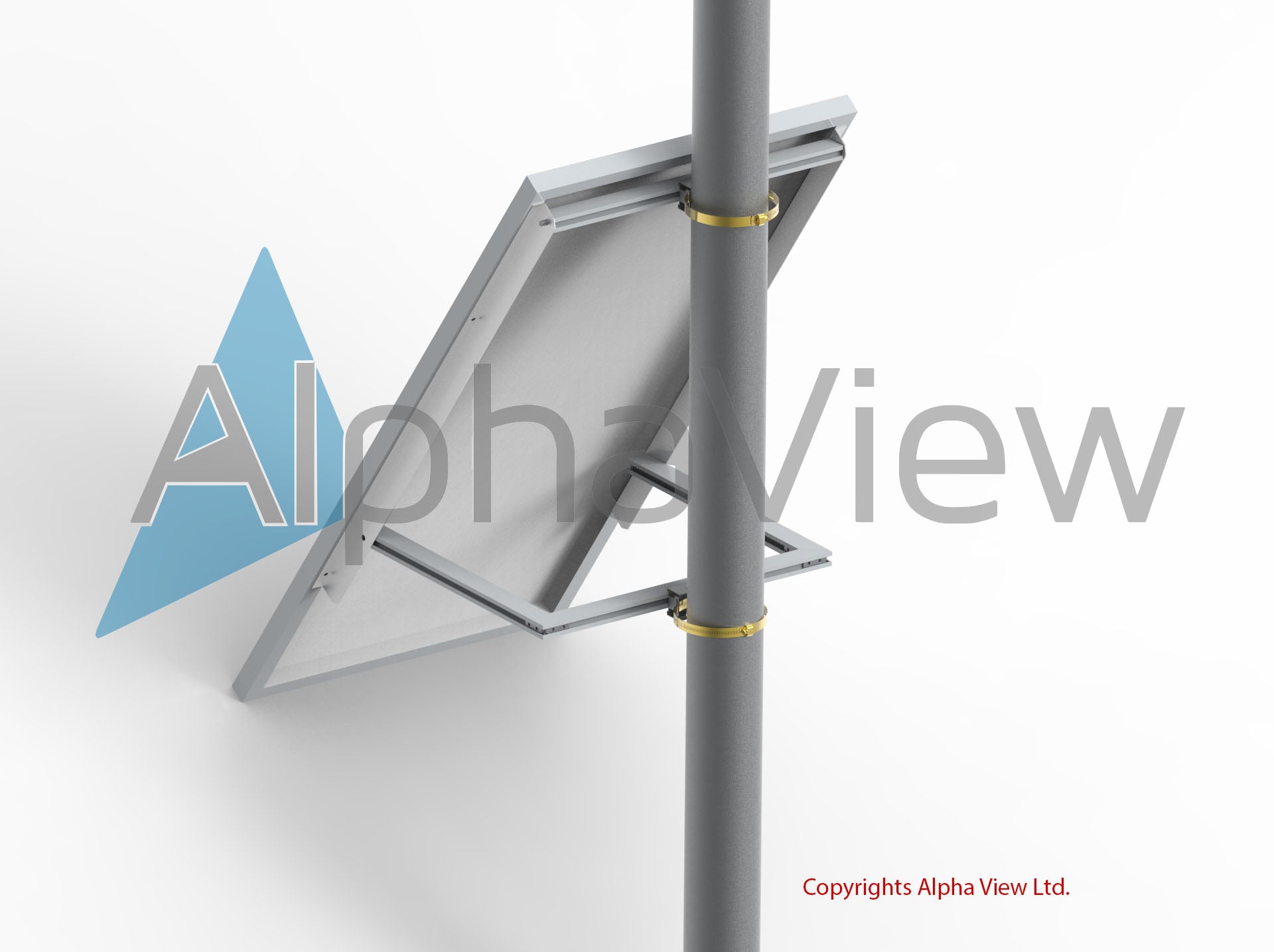

6. Solar panel pole mounting frame (for single panel or 2 solar panels) - up to 218mm in diameter
7. Battery box pole mounts (up to 218mm in diameter)
8. Quick connectors between the panel and the battery / charge controller
9. All plug and play (easy to install / set up)
Power Rating:
- output power: 12V DC / 5V DC (USB)
Single Solar panel kit will allow to run the following equipment (estimated figures):
- 12VDC @ 1Amp -> for up to 45-60 hours without any charge - or unlimited time during the Summer
- 12VDC @ 10 Amps -> for up to 4 hours without any charge - or up to 12 hours on a very sunny day
The system / kit works with our LED small signs, as well as with small appliances rated @ 12VDC or LED lights. It is not suitable for any appliances with high power consumption. For 230VAC appliances you need to get the power inverter.

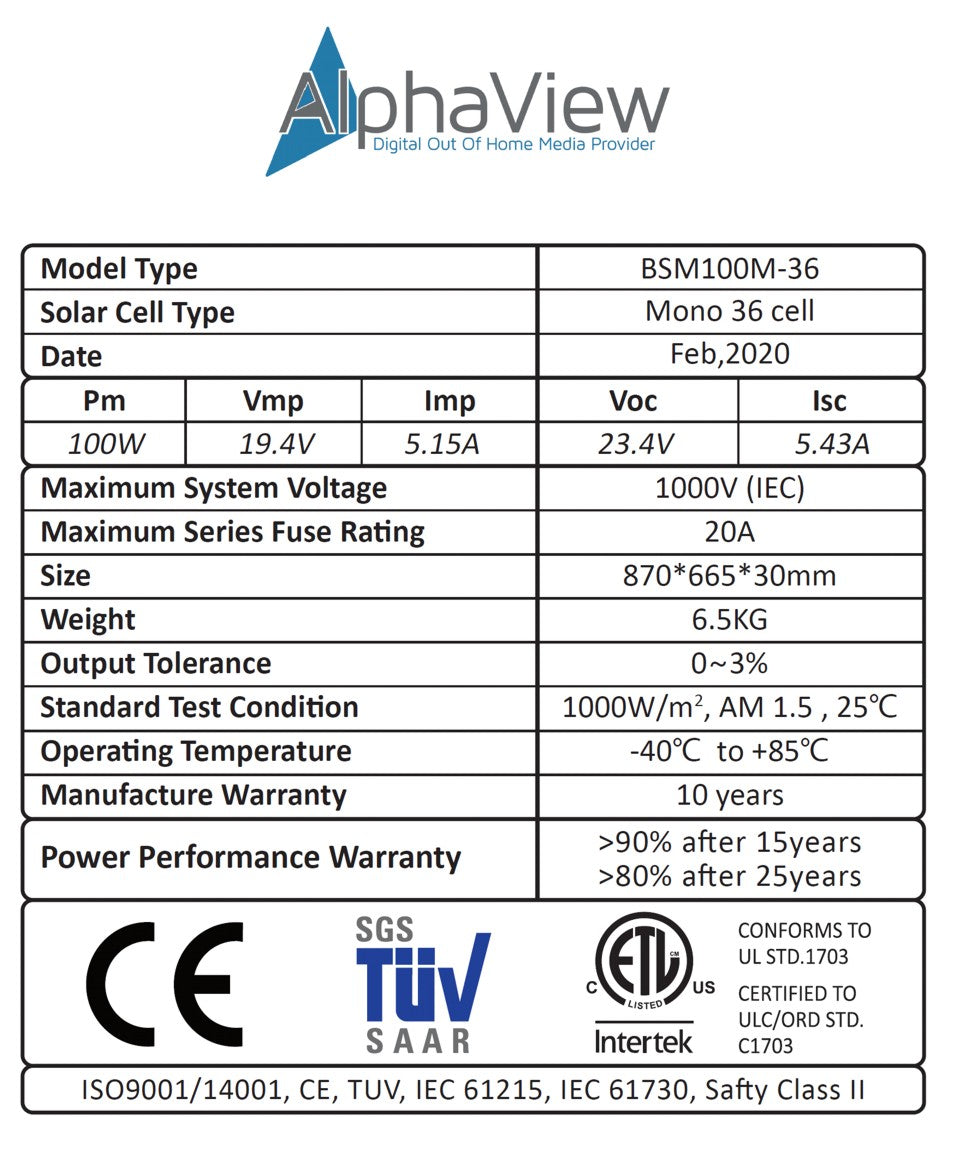

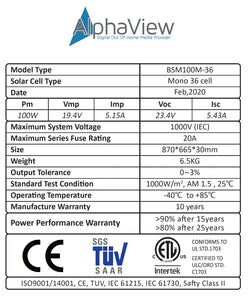

Solar panel - 100W- Mono - 36 cells
- PM / max power: 100W
- Vmp/ max voltage: 19,4 V
- Imp/ max current: 5.15 Amp
- Voc/ open circuit voltage: 23.4 V
- Isc/ short circuit current: 5.43 Amp
| Maximum System Voltage | 1000 V (IEC) |
| Maximum Series Fuse Rating | 20 A |
| Size | 870*665*30mm |
| Weight | 6.5 KG |
| Output tolerance | 0~3% |
| Standard Test Condition | 1000W/m2, AM 1.5 , 25℃ |
| Operating Temperature | -40℃ to +85℃ |
Manufacturer Warranty - 10 years
Power Performance Warranty:
> 90% after 15 years
> 80% after 25 years
ISO9001/14001, CE, TUV, IEC 61215, IEC 61730, Safety Class II
Lead Time:
each set is made to order - we have all components in stock, we just need to build the frame and test the equipment. This should take approx. 2-3 work days from placing the order.
Battery:
Please note we can only ship the battery within Ireland and Northern Ireland.
2 kits available:
1. single solar kit (as above)
2. double solar kit (as per above + 2nd battery + 2nd solar panel + second battery box - for more permanent fixtures)
See our other products for if you want to buy each component individually.
